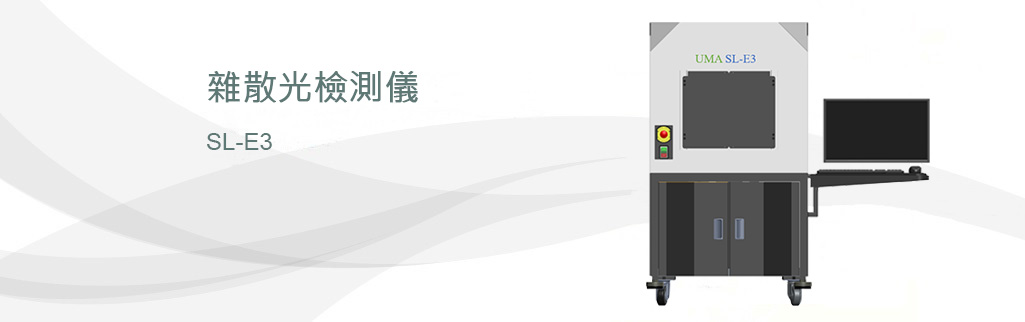

SL-E3
1
SL-E3
雜散光檢測儀 Stray Light Inspection
應用產品
鏡頭大批量炫光檢測。
特點
✔ 單一機台即可支援 FOV 8˚ ~190˚量測。
✔ 光源均勻性高於95%。
✔ 可指定image sensor。
雜散光檢測儀 Stray Light Inspection
應用產品
鏡頭大批量炫光檢測。
特點
✔ 單一機台即可支援 FOV 8˚ ~190˚量測。
✔ 光源均勻性高於95%。
✔ 可指定image sensor。
2
測試功能
| Stray Light Size | Comet tail size in non-imaging area caused by spot light |
| Stray Light Azimuth | Comet tail azimuth caused by spot light |
3
系統規格
| Machine Dimensions | 760(W)*1420(D)*1600(H) mm |
| Machine Weight | 250 Kg |
| Power Supply | AC220V/10A |
| Communication Interface | I/O Card |
| Operation system | Microsoft Windows 10 |
設備規格
| Test Time (s/pc) | Depending on frame rate of sensor and exposure For 30 fps and single exposure mesurement: ~7 s/pc |
| Uniformity of Light Source | >95% |
| Test Point or Regions | 9 ~ 21 (Optional) |
| Time-variant Stability of Light Source | Maintains ±5% (single measurement) |
| Spectrum of Light Source | Visible/NIR (Optional) |
| Color Temperature of Light Source | 3500K ± 500K (Optional) |
| Sensor | Optional |
| XYZ Table Accuracy | ±5 um |
| Limited Measuring Journey of Column Tray | 200 X 200 mm |
| Aspect Ratio | 4:3, 16:9 or Customized |
| Output | Flare data and flare image |
