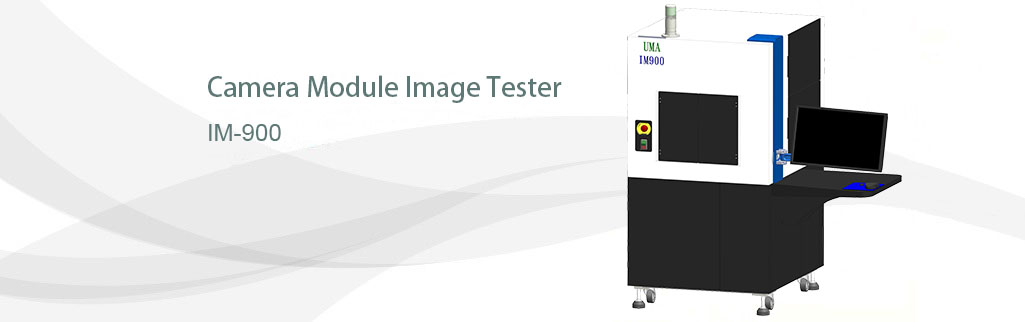

IM-900
Camera Module Image Tester
• The digitalized quality full inspection of camera module can be achieved by through three stations test, intrinsic calibration, Image Quality and Resolution, with multiple test items of each station.
• The maximum FOV（Field of View）is close to 215 degree for fulfilling the test requirements of different kinds of camera modules such as surveillance, sport and in car, etc.
• Two tracks transportation system design allows operating subjects load/unload while testing for reducing the total cycle time.
• Fast tray and Jig switch design can meet small-volume and variety of models production requirements. This system also can be customized for following client’s production line plan.
Camera Module Image Tester
• The digitalized quality full inspection of camera module can be achieved by through three stations test, intrinsic calibration, Image Quality and Resolution, with multiple test items of each station.
• The maximum FOV（Field of View）is close to 215 degree for fulfilling the test requirements of different kinds of camera modules such as surveillance, sport and in car, etc.
• Two tracks transportation system design allows operating subjects load/unload while testing for reducing the total cycle time.
• Fast tray and Jig switch design can meet small-volume and variety of models production requirements. This system also can be customized for following client’s production line plan.
2
| First Test Station | Inspection Items | Unit |
| Intrinsic Calibration | Luminance Uniformity | % |
| Vignetting | ||
| Bad Pixel | Bad Pixel (Full White) | pixels |
| Bad Pixel (Full Dark) | pixels | |
| Blemish | Particles on image | Ratio, pixels, numbers. |
| Remark | Wide FOV test is available. | |
| Second Test Station | Inspection Items | Unit |
| Image Quality | Color Accuracy or Reproduction | Lab & DL、DC、DE |
| White Balance | Lab | |
| SNR | db | |
| SNR_BW | db | |
| Gray Level | 0 ~ 255 (R、G、B) | |
| Third Test Station | Inspection Items | Unit |
| Resolution (ISO 12233) |
MTF(Modulation Transfer Function) | lp/mm |
| SFR (Spatial Frequency Response) | lp/mm | |
| Alignment | Decenter (x , y) | pixel |
| Rotation | Amount of positive clocking or anti-clocking | degree |
| Object Distance MTF | Scanning range from 40cm~infinity. (Optional) | |
| Remark | Infinity /Finite(optional) Conjugate Max. FOV≦215° , Min FOV≧20° |
|
3
| Items | Description |
| Optical | Finite and infinite conjugate system 0.4 m ~ infinite automatic adjustment system (Optional) |
| Test Points | 5 / 9 / 13 collimators |
| Collimator Type | Fixed / Motorized collimators |
| Collimator Specification | Edge Pattern Positioning precision<5um Positioning repeatability<2um |
| Module Size limitation | 5mm3 ~ 60mm3 (Customized) |
| Stage Height | 286mm + table surface(~700mm) |
| FOV range | Max. FOV≦215° |
| Half Sphere Light Source | Color temperature: 5700K+/-500K Life: 30000 hrs |
| Collimator Light Source | Color temperature: 5500K+/-300K Life: 10000 hrs |
| Aspect Ratio | Type A (1:1) / Type B (4:3) / Type C (16:9) |
| Collimator Lens EFL | 25mm ~ 100mm |
| Color Chart | 12 color patches including black, white, gray, primary colors and compliments. |
| Color Light Source | Beck light source design Color temperature: 5700K+/-500K Life: 30000 hrs |
| Machine Size | 840(W) *700(L) *1700(H) mm |
| Weight | 300Kg |
| Power Requirement | AC220V/10A |
| Image Capture Interface | Please refer to the table in next page. |
| OS | Windows 7 |
