SL-E3

1

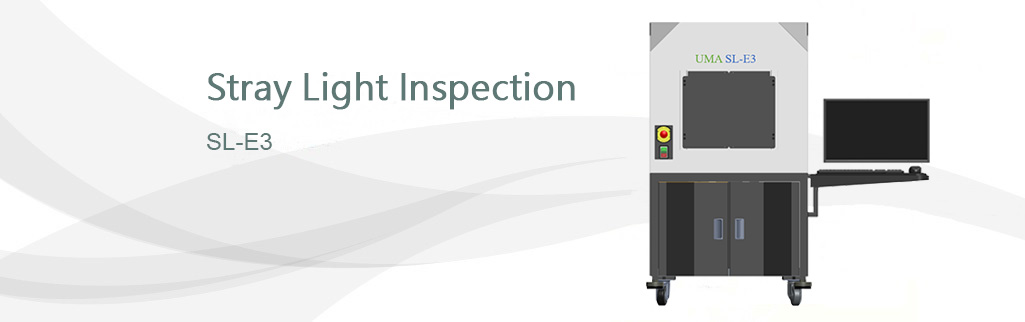

SL-E3
Stray Light Inspection


APPLICATION
Stray light inspection for lens in large quantities.


FEATURES
✔ A single system can support amazingly large FOV 8˚ ~190˚ measurement.
✔ Uniformity of Light Source is more than 95%.
✔ Image sensor can be specified.


2

FUNCTIONS

Stray Light Size Comet tail size in non-imaging area caused by spot light
Stray Light Azimuth Comet tail azimuth caused by spot light

3

SPECIFICATIONS

Machine Dimensions 760(W)*1420(D)*1600(H) mm
Machine Weight 250 Kg
Power Supply AC220V/10A
Communication Interface I/O Card
Operation system Microsoft Windows 10


















Test Time (s/pc) Depending on frame rate of sensor and exposure
For 30 fps and single exposure measurement: ~7 s/pc
Uniformity of Light Source >95%
Test Point or Regions 9 ~ 21 (Optional)
Time-variant Stability of Light Source Maintains ±5% (single measurement)
Spectrum of Light Source Visible/NIR (Optional)
Color Temperature of Light Source 3500K ± 500K (Optional)
Sensor Optional
XYZ Table Accuracy ±5 um
Limited Measuring Journey of Column Tray 200 X 200 mm
Aspect Ratio 4:3, 16:9 or Customized
Output Flare data and flare image
