MD-60AA
1

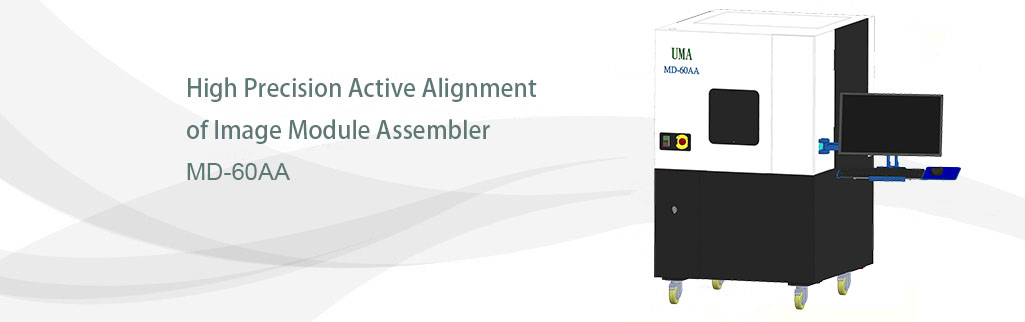

MD-60AA Series
High Precision Active Alignment of Image Module Assembler
MD-60AA provides full function of automatically and multi-axis of high precision active focusing, tilt calibration, centering and glue dispensing and curing for the camera module alignment. The image quality can be optimized based on MTF calculation and multi-axis accurate adjustment.
APPLICATION
It can be widely applied to image module assembling of surveillance, cell phone, IP Cam, sports cam, panoramic camera and wide angle lens for cars.
FEATURES
✔ Full-function and digitalized Lens image quality alignment. Optimize image quality by 5 or 6-degree freedom adjustment.
✔ Max. FOV（Field of View）~ 190 °.
✔ The optical system can be upgrade by program controlled motorized collimator that can meet different objective distances measurement requirements.
✔ High speed image tilt alignment. Able to proceed promptly and accurately image plane correction by αβ axis adjustment and through focus curve calculation.
✔ Quick model change designed tray and jig can fulfill high variety with low quantity production requirements.
✔ The system also can be designed by following client’s requirements of production line.
Optional Upgrade
✔ The optional two light source switching system of collimators can be selected for fast light source changing, such as switching between visible and NIR range.
Series Type
► MD-60AA
► MD-60AA Pro
► MD-60AA HX
► MD-60AA Pro T
► MD-60AA Compact
High Precision Active Alignment of Image Module Assembler
MD-60AA provides full function of automatically and multi-axis of high precision active focusing, tilt calibration, centering and glue dispensing and curing for the camera module alignment. The image quality can be optimized based on MTF calculation and multi-axis accurate adjustment.
APPLICATION
It can be widely applied to image module assembling of surveillance, cell phone, IP Cam, sports cam, panoramic camera and wide angle lens for cars.
FEATURES
✔ Full-function and digitalized Lens image quality alignment. Optimize image quality by 5 or 6-degree freedom adjustment.
✔ Max. FOV（Field of View）~ 190 °.
✔ The optical system can be upgrade by program controlled motorized collimator that can meet different objective distances measurement requirements.
✔ High speed image tilt alignment. Able to proceed promptly and accurately image plane correction by αβ axis adjustment and through focus curve calculation.
✔ Quick model change designed tray and jig can fulfill high variety with low quantity production requirements.
✔ The system also can be designed by following client’s requirements of production line.
Optional Upgrade
✔ The optional two light source switching system of collimators can be selected for fast light source changing, such as switching between visible and NIR range.
Series Type
► MD-60AA
► MD-60AA Pro
► MD-60AA HX
► MD-60AA Pro T
► MD-60AA Compact
2
FUNCTIONS
| Item | Contents |
| Optical System | Finite and infinite conjugate system |
| Through Distance (Optional) | Scan MTF variation from 20cm to infinity object distance. |
| Active Alignment | 5 (or 6) axis adjustment to optimized image quality |
| UV Pre-cure | 4 LED heads to proceed UV Pre-cure |
| 2nd UV Cure (Optional) | Support Dual UV Cure glue application |
| Particle Inspection | Check the particles on sensor before AA process |
| Automatic Glue Dispensing | Support circle, squire and pointing dispensing |
| Through Focus and SFR Curves | Measuring Before and after Active Alignment |
| MTF Measurement at On/Off-axis | MTF test will be both proceeded before and after pre-curing |
3
SPECIFICATIONS
| Machine Dimensions | 1100W*1350D*1700H mm |
| Machine Weight | 450 Kg |
| Power Supply | AC220V/10A |
| Communication Interface | I/O Card |
| Operation System | Windows10 |
| Discerption | Parallel Process Multi axis adjustment for Lens or Holder |
| Optical System | Finite or infinite projection system |
| Motorized Collimators (Optional) |
20cm~infinity Note: Minimum distance could be longer than 20cm depends on collimators lens’s EFL. |
| Lens & Module Dimensions (Customized) |
• Lens Ø：3 ~ 25 mm H：2 ~ 20 mm • Module H：5 ~ 30 mm |
| UV light Source | Central Wave length 365nm |
